The sliding function allows contactless and safe opening of the non-insulated jaws.
6004 Joker VDE 4 Set 1 VDE-insulated self-setting spanner set
05020170001, 4 pieces- For hexagon screw heads and bolts with wrench sizes 7.0; 8.0; 9.0; 10.0; 11.0; 12.0; 13.0; 14.0; 15.0; 16.0; 17.0; 18.0; 19.0 (metric)
- For hexagon screw heads and bolts with wrench sizes 1/4"; 5/16"; 3/8"; 7/16"; 1/2"; 17/32"; 9/16"; 19/32"; 5/8"; 11/16"; 3/4" (imperial)
- Individually tested tools with insulated handles for safe working up to 1,000 volt, with anti-slip protection and sliding function for contactless and safe opening of the non-insulated jaws
- Automatically and continuously gripping hexagonal screws and bolts
- Lever mechanism upon gripping prevents slipping and damage
- With mechanical ratchet functionality for fast and consistent screwdriving without removing the spanner
- Return angle of only 30° when using the corner-width rectangular prisms in the jaw
Product features
Individually tested
The individual testing at 10,000 volts, in accordance with IEC 60900, ensures safe working with loads up to 1,000 volts.

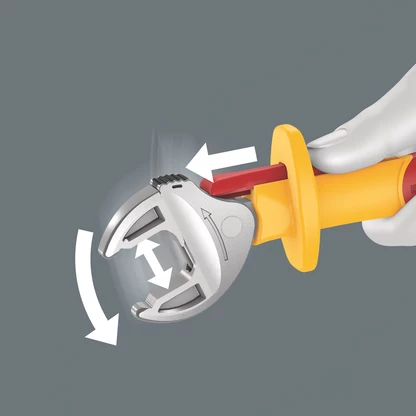

Safe opening of the jaws

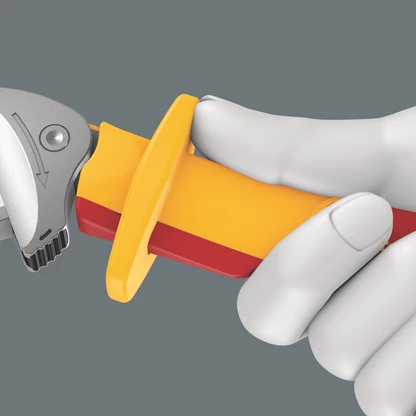

Anti-slip protection
The anti-slip protection at the front end of the handle ensures a secure hold and prevents your hand from accidentally slipping forward.

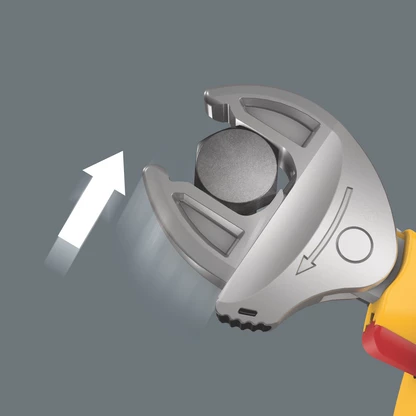

Joker 6004 VDE: automatically and continuously self-setting
With its automatically and continuously gripping parallel jaws the Joker 6004 VDE spanner covers all dimensions within the potential operative range. The tool finds the required size by itself when attaching it to the bolt or screw.

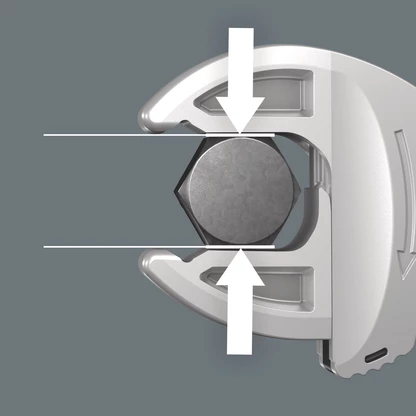

Joker 6004: gentle to the screw
The parallel, smooth jaws of the Joker 6004 VDE offer a seating stress and can thus prevent the nut or screw head from rounding, which can occur when power is transmitted via the corners.

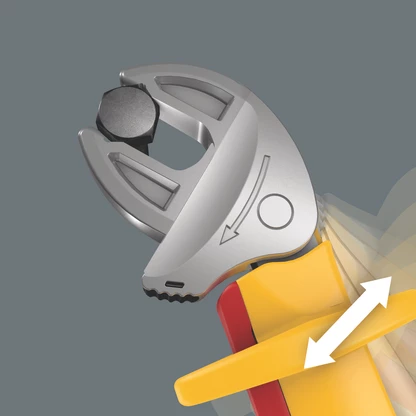

Joker 6004 VDE: ratchet mechanism for quick working
The ratchet feature in the jaw ensures fast and consistent screwdriving without removing the tool.

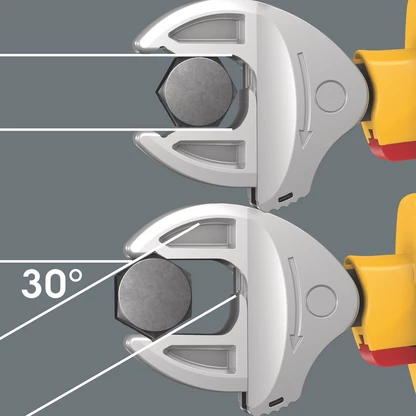

Low return angle
The corner-width rectangular prisms in the jaw allow a return angle of only 30°.
Find out more about this product
Product description
Individually tested tools as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. The adjustable VDE spanner continuously and automatically grips all hexagonal sizes in the indicated range of dimensions - metric and imperial. The integrated lever mechanism securely clamps the hexagon screw or bolt between the jaws, which significantly reduces the risk of slippage or damage. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a return angle of only 30° can be achieved. The single-arm design, in conjunction with the ratchet feature and the corner-width prism, makes it possible to work even in confined spaces. The adjustable Joker 6004 VDE has a naturally comfortable handle thanks to the 2-component plastic insulation. Safety is increased by the anti-slip protection at the front end of the handle. The sliding function offers contactless and safe opening of the non-insulated jaws, thereby providing extra protection.
Video
Tools in this set
17; 8; 9; 10 x 1/4; 5/16; 3/8“" x 119 mm
05020150001
110; 11; 12; 13 x 7/16; 1/2" x 155 mm
05020151001
113; 14; 15; 16 x 1/2; 17/32; 9/16; 19/32; 5/8" x 190 mm
05020152001
116; 17; 18; 19 x 5/8; 11/16; 3/4" x 226 mm
05020153001
Hook and Loop Fastener Strip 120
1120 x 50 mm
Applications:
Elektro / VDE
