The fine tooth mechanism, with its 60 teeth, allows a small return angle of only 6° – ideal for precision work.
- Zyklop Mini ratchet for the direct mounting of the Zyklop 8790 FA special sockets with 1/4" and Hex 11 hexagon drive
- The 8790 FA special sockets have a very low overall height (18 mm), ideal for screw connections where space is limited
- Drop-forged, full-steel ratchet design
- For screwdriving in very confined working situations
- Bit holder, 9 sockets, 14 bits and 1 adaptor
- Hollow design of the Zyklop Mini ratchet 8005 and the sockets 8790 FA; the thread rods (up to M6) can pass completely through the tool during screwdriving
- In robust textile box
Product features

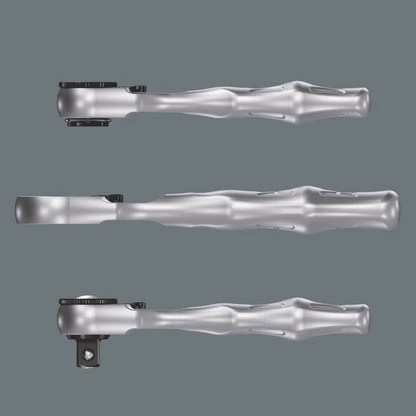

The Zyklop Mini Ratchets
For all difficult-to-access applications.
The Zyklop Mini
Rapid screwdriving
High working speeds can be attained with the Zyklop Mini bit ratchet. The thumb wheel is important, enabling more rapid screwdriving, and the lever of the Zyklop Mini only needs to be used for the final tightening of the screw.
Slim design
Its slim design makes it ideal for all particularly confined working situations.
Insert ratchet and sockets for thread rods
The head of the Zyklop Mini 2 ratchet is hollow in the centre – as are the 8790 FA sockets. This allows thread rods up to M 6 to pass completely through the tool during use, and hexagon nuts can be tightened and loosend.
Is such a small tool sufficiently resilient?
The Zyklop Mini 1 can withstand a torque up to 65 Nm. That is far more power than can normally be transferred to such a small tool.
What parts can be connected to the Zyklop Mini 1?
Bits and sockets. Bits can be connected directly. However, a holder can be connected first and then the bit can be attached to this. This then serves as an extension with a free-turning sleeve. An adaptor e.g. Wera 870/1 is needed for sockets – ¼" hexagonal on a square drive (included in the Bit-Check and with the individual Zyklop Mini 1 in the set).
Find out more about this product
Product description
Ratchets and screws in a Kraftform Kompakt format. These drop-forged, full-steel ratchets, Zyklop Mini 1 and 2, combine filigree design with incredible robustness. For particularly rapid screwdriving in confined working situations. Zyklop Mini 1 or Zyklop Mini 2 can be used whenever screwdriving with power tools or conventional hand tools is unfeasible for lack of space. 1 bit ratchet Zyklop Mini 1; suitable for the take-up of bits with ¼" hexagon head drive as per DIN ISO 1173-C 6.3 and E 6.3 and Wera connecting series 1 and 4; also possible to use ¼" sockets by attaching the Wera adaptor 870/1. 1 socket ratchet Zyklop Mini 2; suitable for the direct attachment of Wera Zyklop special sockets 8790 FA.
Tools in this set
8001 A Bit Ratchet 1/4"
11/4" x 87 mm
1107 mm
05003660001
11/4" x 78 mm
05051274001
1PH 1 x 25 mm
05072070001
1PH 2 x 25 mm
05072072001
1PZ 1 x 25 mm
05072080001
1PZ 2 x 25 mm
05072082001
1TX 10 x 25 mm
05066485001
1TX 15 x 25 mm
05066486001
1TX 20 x 25 mm
05066487001
1TX 25 x 25 mm
05066488001
1TX 30 x 25 mm
05066490001
1TX 40 x 25 mm
05066491001
13 x 25 mm
05056315001
14 x 25 mm
05056320001
15 x 25 mm
05056325001
16 x 25 mm
05056330001
14 x 18 mm
05003665001
15 x 18 mm
05003667001
15.5 x 18 mm
05003668001
16 x 18 mm
05003669001
17 x 18 mm
05003670001
18 x 18 mm
05003675001
110 x 18 mm
05003690001
112 x 18 mm
05003684001
113 x 18 mm
05003685001
Hook and Loop Fastener Strip 120
1120 x 50 mm
