Quick setting of the selectable tightening torque values.
Kraftform Kompakt VDE Safe-Torque Speed control cabinet Set 1
05006633001, 23 pieces- Individually tested tools as per IEC 60900
- VDE bladeholding torque screwdriver 7508 VDE with 5 pre-set values (0.4; 0.8; 1.2; 1.6; 2.0 Nm)
- VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0 Nm)
- Accuracy ±10%
- Speed: Extremely fast setting of desired torque values
- Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation
- Torque Lock function: for high tightening and loosening moments without torque
- 817 VDE handle for Kraftform Kompakt interchangeable blades
- VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication
- Compact and stable tool box with Wera 2go compatibility
Product features
Individually tested
Each Kraftform Kompakt VDE set has been tested individually at 10,000 volts, in accordance with IEC 60900.This ten-times-higher testing load guarantees safe working at their maximum permitted load of 1,000 volts.

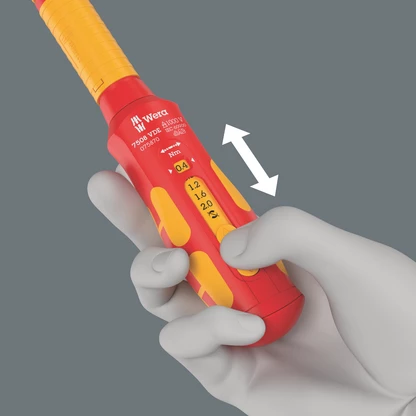

Quick torque setting

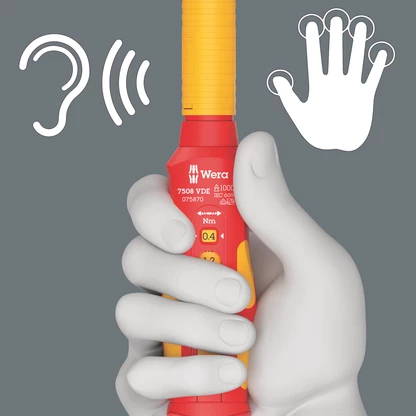

Excess-load signal
Distinctly audible and noticeable excess-load signal when the pre-set torque is reached.

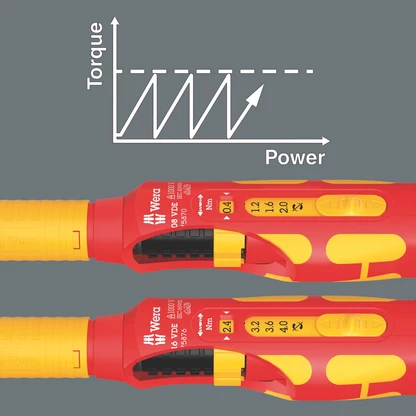

Safe torque transfer
The slip-over torque mechanism for clockwise/counterclockwise torque operation prevents unintentional application of excessive torque.
Handle/interchangeable blade system
The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.
VDE interchangeable blade with reduced shaft diameter (iS)
Reduced blade diameter with integrated protective insulation, allows sunken screws and spring elements to be accessed and actuated, individually tested as per IEC 60900.
PlusMinus screwdrivers

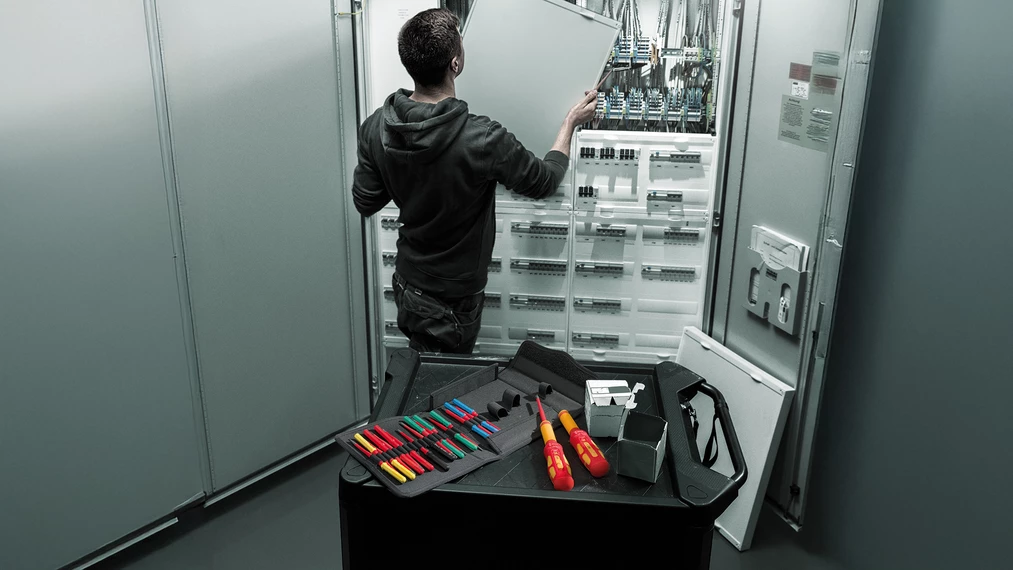

For the use in terminal blocks, control cabinets, switches, relays, sockets etc.
Find out more about this product
Product description
23-piece Kraftform Kompakt VDE set. One Safe-Torque Speed 7508 VDE torque wrench with five selectable maximum tightening torques (0.4; 0.8; 1.2; 1.6; 2.0 Nm), one 7516 VDE Safe-Torque Speed torque wrench with five selectable maximum tightening torques (0.4; 0.8; 1.2; 1.6; 2.0 Nm), each with a fixed position (Torque Lock) for unlimited loosening and tightening moments, digital torque value display, reliable slip-over mechanism when the set torque is reached, accuracy ±10%, one 817 VDE bladeholding screwdriver. Torque wrenches and bladeholding screwdriver solely for Wera VDE blades. 20 VDE blades (each 157 mm length) with Take it easy tool finder: colour coding by profile and laser-engraved size indication, most of which with reduced blade diameter, so that even low-lying screw and spring elements can be easily reached and operated. In a robust textile box for neat storage and convenient transport.
Video
Tools in this set
Part number: 05006633001
19 x 0.4 Nm x 0.8 Nm x 1.2 Nm x 1.6 Nm x 2.0 Nm x 192 mm
05075870001
19 x 2.4 Nm x 2.8 Nm x 3.2 Nm x 3.6 Nm x 4.0 Nm x 192 mm
05075876001
19 x 98 mm
05003990001
1PH 1 x 157 mm
05006512001
1PH 2 x 157 mm
05006513001
1PZ 1 x 157 mm
05006526001
1PZ 2 x 157 mm
05006527001
1# 1 x 157 mm
05006516001
1# 2 x 157 mm
05006517001
1# 1 x 157 mm
05006530001
1# 2 x 157 mm
05006531001
1TX 15 x 157 mm
05006540001
1TX 20 x 157 mm
05006541001
1TX 25 x 157 mm
05006542001
1TX 10 x 157 mm
05006534001
1TX 30 x 157 mm
05006539001
12.5 x 157 mm
05006518001
13 x 157 mm
05006519001
14 x 157 mm
05006520001
15 x 157 mm
05006521001
10.6 x 3.5 x 157 mm
05006506001
10.8 x 4 x 157 mm
05006507001
11 x 5.5 x 157 mm
05006508001
Hook and Loop Fastener Strip 120
1120 x 50 mm
Applications :
Electrical / VDE
