For torque wrenches from the Click-Torque X series with 14x18 mm mounting.
Click-Torque X 7 torque wrench for insert tools, 10-100 Nm
05075657001, 14x18 x 10-100 Nm- For 14x18 mm interchangeable insert tools
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- Audible and tactile release mechanism when the set torque value is reached
- Measuring range: 10-100 Nm; precision ± 4 % as per DIN EN ISO 6789-1:2017-07
- Very robust design with ergonomic 2-component handle suitable for right and left-handed use
- The Click-Torque collar is placed around the tube of the Wera Click-Torque torque wrench. It prevents the handle from touching the ground. Dirt and damage are avoided. Also serves as "anti-roll protection".
- The laser-engraved, abrasion-proof QR code makes it easier to determine the correct torque value depending on the torque wrench and insert tool used
Product features
Torque Advisor
The laser-engraved, abrasion-proof QR code makes it easier to determine the correct torque value depending on the torque wrench and insert tool used. Simply scan with your smartphone or tablet (if available, both QR codes: torque wrench and insert tool). A website opens automatically which recognizes the scanned tools (no app needed!). Then enter the required torque value; the corrected value is determined automatically. No need to use formulas/calculations.

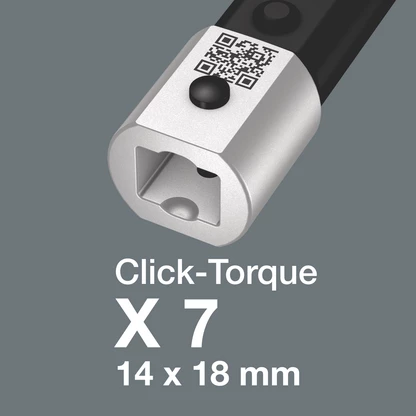

Drive 14x18 mm
Exact
Precision of ±4 % as per DIN EN ISO 6789-1:2017-07.
Easy and safe

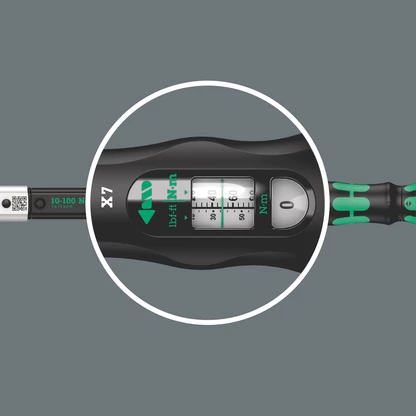

Easy setting and saving of the desired torque value; easy to read on main and fine scales.
Setting with Speed
With audible and tactile locking when the scale values are reached.

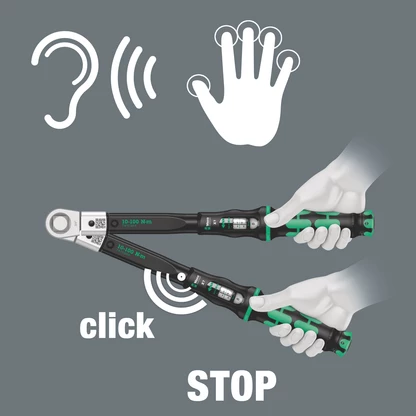

Release mechanism
On reaching the desired torque value, an audible and tactile mechanism is triggered.
For right and left direction
The Click-Torque wrenches for insert tools are suitable forclockwise and counterclockwise uses.
Product details
Facts and figures
Part number
05075657001
Mounting size
14x18
Main scale measuring range Nm
10-100
Main scale graduation Nm
5
Subscale measuring range lbf. ft.
8-73
Torque wrench length mm
395
Stichmaß Prüfaufsatz mm
25.5
Strecke Kraftanlagepunkt/Prüfgerät-Achse mm
343.0
Handle length G2 mm
140
Clock diameter mm
47
Diameter of the head mm
29
Height ratchet head H2 mm
20
Torque wrench length (inches) inch
14 41/64"
Handle length G2 (inches) inch
5 33/64"
Watch diameter (inches) inch
1 27/32"
Tip diameter (inches) inch
1 9/64"
Ratchet head height H2 (inches) inch
25/32"
Hauptskala Messbereich Min Nm
10.0
Hauptskala Messbereich Max Nm
100.0
Nebenskala Messbereich Min lbf. ft.
8.0
Nebenskala Messbereich Max lbf. ft.
73.0
Note
(1)
Add to watch list
(1) Sk = Actual dimension of the test attachment; lk = Distance from the force application point to the test device axis
Find out more about this product
Product description
Click-Torque wrench in the unmistakable, robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right and left-hand use and with square insert 14x18mm for insert tools.
Sets with this tool :
Applications :
Plumbing, Heating & Air Conditioning
