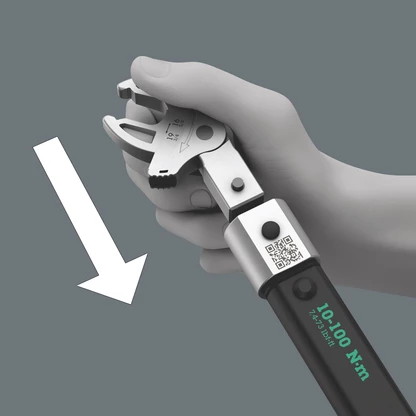

The laser-engraved, abrasion-proof QR code makes it easier to determine the correct torque value depending on the torque wrench and insert tool used. Simply scan with your smartphone or tablet (if available, both QR codes: torque wrench and insert tool). A website opens automatically which recognizes the scanned tools (no app needed!). Then enter the required torque value; the corrected value is determined automatically. No need to use formulas/calculations.
9530 Torque wrench set for heat pumps/air conditioning
05136076001, 4 pieces- Set for the proper tightening of screw connections when installing and repairing refrigeration and air conditioning systems as well as heat pumps
- Click-Torque X 7 torque wrench with mounting for exchangeable insert tools 14x18 mm
- Measuring range: 10-100 Nm; precision ± 4 % as per DIN EN ISO 6789-1:2017-07
- The laser-engraved, abrasion-proof QR code makes it easier to determine the correct torque value depending on the torque wrench and insert tool used
- Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values
- Audible and tactile release mechanism when the set torque value is reached
- The adjustable 7880 Joker covers all metric and imperial dimensions in the respective field of application
- Automatically and continuously gripping hexagonal screws and bolts
- With mechanical ratchet functionality for fast and consistent screwdriving without removing the spanner
Product features
Simple and error-free determination of the torque value

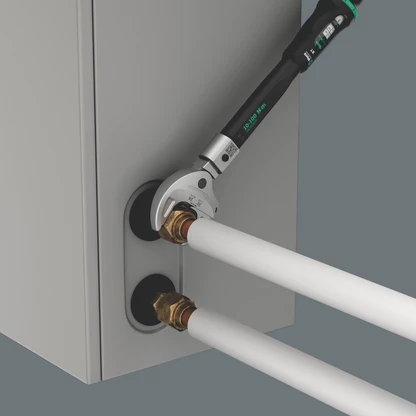

For air conditioning lines
With the 9530 set, the screw connections used for refrigeration and air conditioning systems as well as heat pump lines can be properly tightened.
Click-Torque X 7 torque wrench
Measuring range 10-100Nm; with mounting for exchangeable insert tools 14x18 mm.
Exact
Precision of ±34 % as per DIN EN ISO 6789-1:2017-07.
Easy and safe
Easy setting and saving of the desired torque value; easy to read on main and fine scales.
Setting with Speed
With audible and tactile locking when the scale values are reached.
Find out more about this product
Product description
4-piece Click-Torque torque wrench set with three self-setting exchangeable Joker insert spanners. For the proper tightening of screw connections when installing and repairing refrigeration and air conditioning systems as well as heat pumps. Click torque wrench in the distinctive Wera design. Very robust design with high accuracy as per DIN EN ISO 6789-1:2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. For clockwise and anti-clockwise torque-control and with 14x18 mm square head insert for mounting corresponding insert tools. With its continuous and parallel jaws, the three self-setting Joker 7880 insert spanners replace several single spanner sizes. The required size is automatically and continuously set when attaching the tool to the hexagon bolt or screw. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a return angle of only 30° can be achieved.
Tools in this set
114x18 x 10-100 Nm
(1)
05075657001
(1) Sk = Actual dimension of the test attachment; lk = Distance from the force application point to the test device axis
114x18 x 24-32 x 15/16-1 1/4" x 113.5 mm
05020173001
114x18 x 19-24 x 3/4-15/16" x 95 mm
05020172001
114x18 x 16-19 x 5/8-3/4" x 85.5 mm
05020171001
Applications:
Sanitär-, Heizungs- & Klimatechnik
