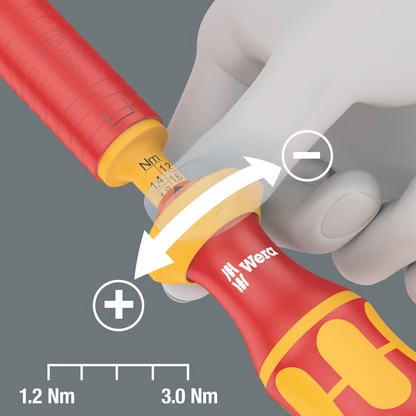

Simple setting of the required torque by hand.
Series 7400 VDE Kraftform adjustable torque handle (0.3-3.5 Nm)
- Adjustable Kraftform VDE torque holder
- Adjustable torque from 0.3-1.2
- Distinct audible and perceivable excess load signal when the pre-set torque value is reached
- Suitable for Kraftform Kompakt VDE blades
- Rapid exchange of the interchangeable blades
Product features
Individually tested
The individual testing at 10,000 volts, in accordance with IEC 60900, ensures safe working with loads up to 1,000 volts.
Kraftform adjustable torque handle for Electricians
Kraftform adjustable torque handle for Electricians
Easy-to-read scale value. Measurement accuracy is ± 6 % in accordance with the standard EN ISO 6789.

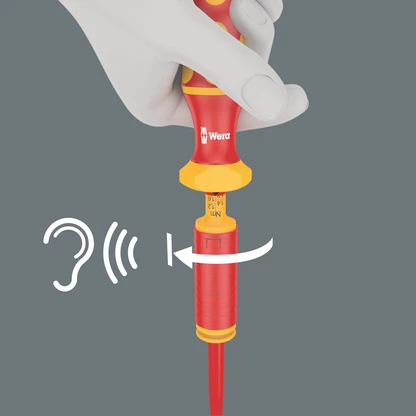

Excess-load signal
Distinctly audible and noticeable excess-load signal when the pre-set torque is reached.

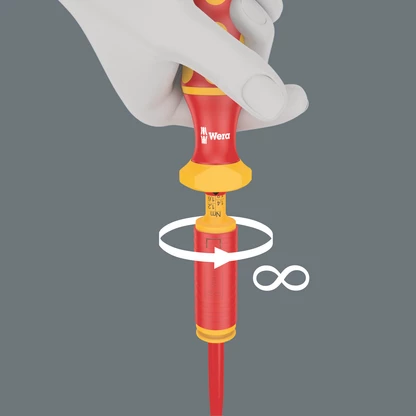

Unlimited loosening torque
Unlimited torque for loosening seized screws.

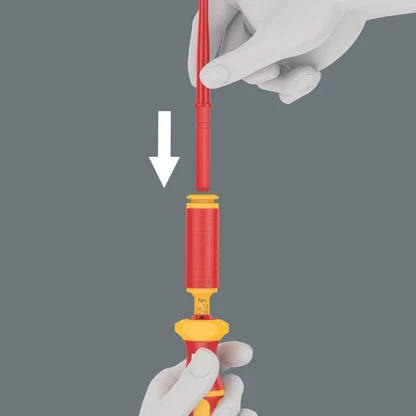

Inserting the blade
According to the job, the insulated inter-changeable blade with the required tipstyle, or a switch cabinet key is inserted into the clamping mechanism.

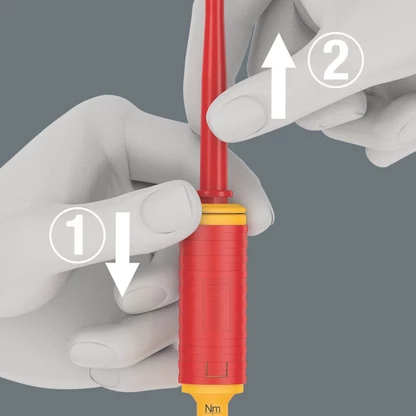

Taking out the blade
By pulling and holding down the clamping sleeve the interchangeable screwdriver blade, or the switch cabinet key, is unlocked and can easily be taken out of the handle.
Product details
Facts and figures
Part number
05074752001
05074750001
05074757001
Item number art. no.
7440 VDE
7441 VDE
7444 VDE
9.0
9.0
9.0
0.3-1.2
1.2-3.0
1.7-3.5
0.05
0.10
0.10
192
192
192
7 9/16"
7 9/16"
7 9/16"
Add to watch list
Find out more about this product
Product description
Torque VDE holder for safe work up to 1,000 volts. Adjustable torque value from 0.3-1.2 Nm. Distinct audible and perceivable excess load signal when the pre-set torque value is reached. Unlimited manual loosening torque. For Kraftform Kompakt VDE blades: the handle/interchangeable blade system allows a rapid exchange of the blade and thereby diverse applications.
Applications:
Elektro / VDE
