The ratchet mechanism of the 416 RA T-handle bitholding screwdriver is completely embedded in the handle. The compact shape of the tool allows convenient working.
- Set especially for HVAC applications
- T-handle bitholding screwdriver with integrated fine-toothed ratchet for fast and safe working
- Convenient working thanks to the ratchet mechanism fully embedded in the handle
- Reversing lever for comfortable clockwise/counterclockwise direction change
- Ergonomic 2-component handle with finger handle recesses and pleasant surface feel for very high power transmission and fatigue-free working
- Rapidaptor bitholding screwdriver with fast-rotating sleeve for lightning-fast bit changes and high working speeds
- For bits with 1/4" external hexagon drive as per DIN ISO 1173-C 6.3 and E 6.3
- Fast-rotating sleeve for extremely high working speed
Product features
Ratchet functionality

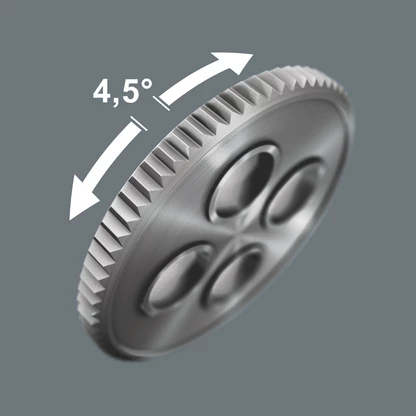

The integrated ratchet with fine toothing (80 teeth) and a return angle of 4.5° eases and accelerates screwdriving without having to reposition the tool.

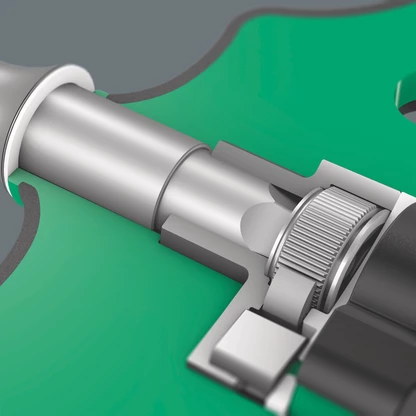

Ratchet mechanism in the handle
Reversible clockwise/counterclockwise

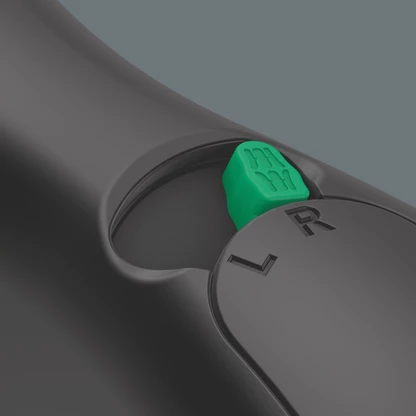

The change of direction can easily be made using the reversing lever.

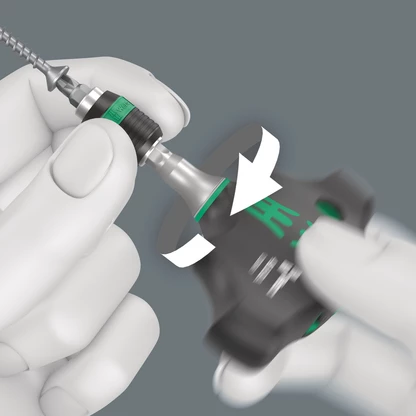

Fast-rotating sleeve
The fast-rotating sleeve allows the tool to be guided safely while screwdriving and increases the working speed.
Chuck-all
The Rapidaptor quick-release chucks hold ¼" DIN ISO 1173-C 6,3 and E 6,3 as well as Wera series 1 and 4 bits.
Rapid-in and self-lock
The bit can be pushed into the adaptor without moving the sleeve. The lock is activated automatically as soon as the bit is applied to the screw. Bits are held securely and wobble-free.
Rapid-out
Simply push the sleeve forward to change the bit. The spring mechanism lifts the bit off the magnet and unlocks the tool. The bit can be easily removed. The rapid-out function makes it easy to remove even the smallest bits without extra tools.
Find out more about this product
Product description
18-piece set in a robust textile box. One 416 RA T-handle bitholding screwdriver with ratchet functionality and Rapidaptor quick-release chuck for ¼" bits. The integrated ratchet with fine toothing (80 teeth/return angle 4,5°) eases and accelerates screwdriving without having to reposition the tool. The ratchet mechanism completely embedded in the handle ensures very handy and comfortable work. With reversing lever for comfortable clockwise/counterclockwise direction change in one-hand operation. The ergonomic shape of the handle fills the ball of the hand well, the fingers lie securely in the softly rounded recessed grips. The whole hand comes into contact with the handle, friction loss between hand and handle is avoided. Bitholding screwdriver for bits with 1/4" external hexagon drive as per DIN ISO 1173-C 6.3 and E 6.3. With Rapidaptor technology for lightning-fast bit changes. 14 tough bits, ¼", 89 mm length, for universal use. 2 nutsetters, magnetic, for easier application of the screw.
Tools in this set
11/4" x 45 mm
05023461001
11/4" x 119 mm
05051462001
1PH 2 x 89 mm
05059775001
1PZ 2 x 89 mm
05060035001
1# 1 x 70 mm
05059896001
1# 2 x 70 mm
05059897001
1TX 15 x 89 mm
05060187001
1TX 20 x 89 mm
05060188001
1TX 25 x 89 mm
05060189001
1TX 30 x 89 mm
05060191001
12 x 89 mm
05059628001
12.5 x 89 mm
05059629001
13 x 89 mm
05059630001
14 x 89 mm
05059631001
15 x 89 mm
05059632001
16 x 89 mm
(1)
05059633001
(1) Hexagonal blade
18 x 50 mm
05060423001
110 x 50 mm
05060425001
Hook and Loop Fastener Strip 120
1120 x 50 mm
Applications:
Sanitär-, Heizungs- & Klimatechnik
