With 1/2" external square head tip (including patent-registered socket locking).
Click-Torque Lock C 3 Torque wrench, adjustable, reversible ratchet, Torque Lock function, 40-200 Nm
05075692001, 1/2" x 40-200 Nm- With 1/2" square head drive
- Torque Lock function: The torque function can be deactivated so that the tool can also be used for loosening
- Extra click: audible and tactile torque setting
- Torque wrench gives an audible and tactile signal
- Measuring range: 40-200 Nm; precision ±3 % as per DIN EN ISO 6789-1:2017-07
Product features

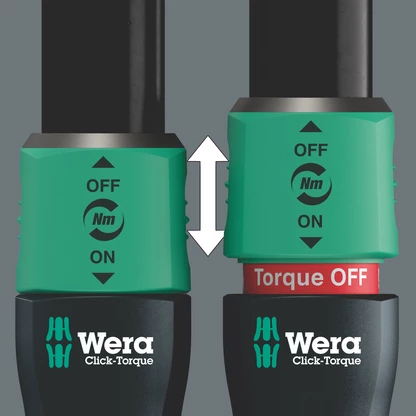

Torque Lock function
The torque function can be deactivated so that the tool can also be used for loosening screws and bolts.

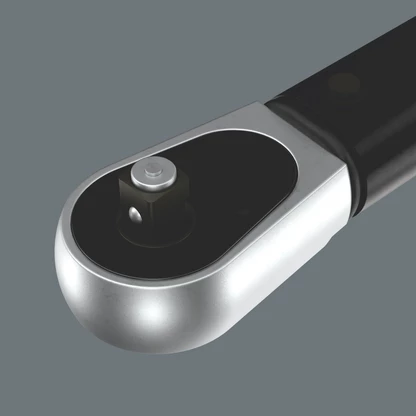

With external square head tip
Exact
Precision of ±3 % as per DIN EN ISO 6789-1:2017-07.
Easy and safe

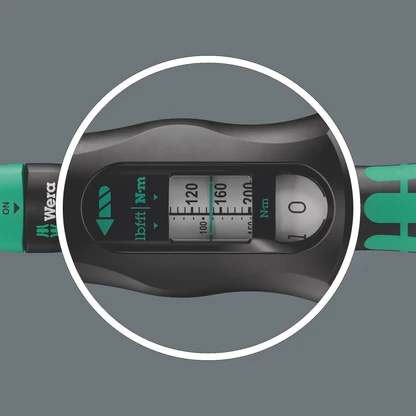

Easy setting and saving of the desired torque value; easy to read on main and fine scales.
Setting with Speed
With audible and tactile locking when the scale values are reached.

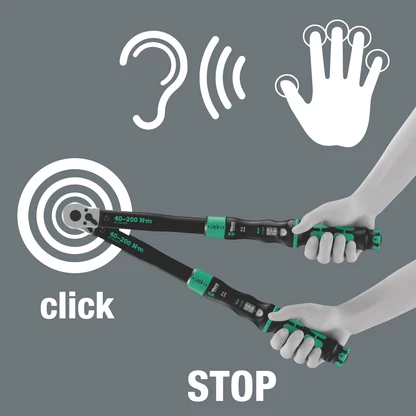

Release mechanism
On reaching the desired torque value, an audible and tactile mechanism is triggered.
Product details
Facts and figures
Part number
05075692001
Mounting size inch
1/2"
Main scale graduation Nm
10
Main scale measuring range Nm
40-200
Subscale measuring range lbf. ft.
30-146
Torque wrench length mm
512
Handle length G2 mm
140
Clock diameter mm
47
Diameter of the head mm
43
Height ratchet head H2 mm
18.4
Torque wrench length (inches) inch
20 5/32"
Handle length G2 (inches) inch
5 1/2"
Watch diameter (inches) inch
1 27/32"
Tip diameter (inches) inch
1 11/16"
Ratchet head height H2 (inches) inch
23/32"
Add to watch list
Find out more about this product
Product description
Adjustable torque wrench for controlled clockwise torque operation. With 1/2" square head drive. The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. Fine-toothed reversible ratchet with 45 teeth. Accuracy of ±3 % as per DIN EN ISO 6789-1:2017-07.
