The torque function can be deactivated so that the tool can also be used for loosening.
Click-Torque Lock A 5 R/L Torque wrench, adjustable, Torque Lock function, square head insert (1/4"), clockwise/counterclockwise torque operation, 2.5-25 Nm
05075693001, 1/4" x 2.5-25 Nm- For clockwise and counterclockwise operation
- Torque Lock function: The torque function can be deactivated so that the tool can also be used for loosening screws and bolts
- With square head insert (including patent-registered socket locking)
- Extra click: audible and tactile torque setting
- Torque wrench gives an audible and tactile signal
- Measuring range: 2.5-25 Nm; precision ±4 % as per DIN EN ISO 6789-1:2017-07
Product features

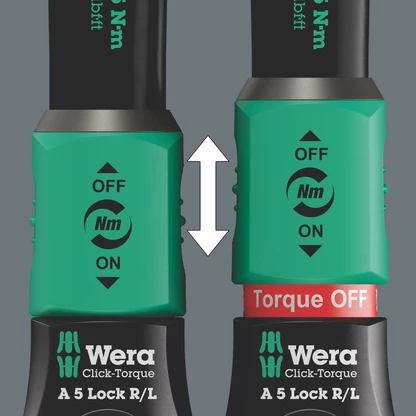

Torque Lock function
With external square head tip
With square head insert (including patent-registered socket locking) for controlled clockwise and counterclockwise torque operation.
Exact
Precision of ±4 % as per DIN EN ISO 6789-1:2017-07.
Easy and safe
Easy setting and saving of the desired torque value; easy to read on main and fine scales.
Setting with Speed
With audible and tactile locking when the scale values are reached.

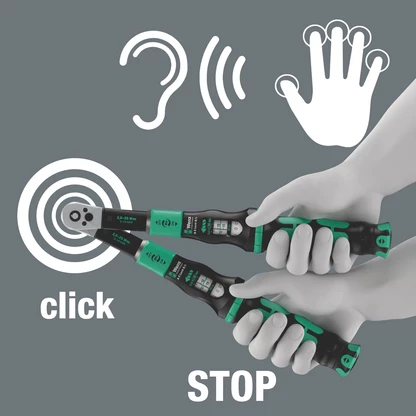

Release mechanism
On reaching the desired torque value, an audible and tactile mechanism is triggered.
Product details
Facts and figures
Part number
05075693001
Mounting size inch
1/4"
Main scale graduation Nm
1
Main scale measuring range Nm
2.5-25
Subscale measuring range lbf. ft.
1-18
Torque wrench length mm
299
Handle length G2 mm
123
Clock diameter mm
42
Diameter of the head mm
26
Height ratchet head H2 mm
11.75
Torque wrench length (inches) inch
11 49/64"
Handle length G2 (inches) inch
4 53/64"
Watch diameter (inches) inch
1 41/64"
Tip diameter (inches) inch
1 1/64"
Ratchet head height H2 (inches) inch
29/64"
Add to watch list
Find out more about this product
Product description
Adjustable torque wrench for controlled clockwise and counterclockwise torque operation. With ¼" square head drive. The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. Fine-toothed reversible ratchet with 45 teeth. Accuracy of ±4 % as per DIN EN ISO 6789-1:2017-07.
