9753 Foam insert Kraftform Kompakt maintenance set 1

05150153001, 45 pieces
  • Durable foam insert, each tool has its own place; two-coloured, missing tools will quickly be noticed
  • One Kraftform Kompakt VDE 817 bitholding screwdriver and 10 blades; individually tested as per IEC 60900
  • 1/4" Zyklop ratchet and accessories (sockets, extension, bit adapter, bits)
  • Joker 6002 double spanner with practical holding function by a metal plate in the open end
  • Joker 6004 S self-setting spanner for bolts and screws of 10-13mm (metric) and 7/16"-1/2" (imperial)
  • L-keys (sizes 3 and 4) with hose sleeve, with holding function for hexagonal socket screws, the Hex-Plus profile prevents premature rounding of hexagonal socket screws
  • 1 KNIPEX Cobra® High-Tech Water Pump Pliers 87 01 250
  • Width x height x depth: without tools 344 x 30 x 392 mm, with tools 344 x 41 x 392 mm

Product features

GS - tested safety
Zyklop Speed
Freely pivoting ratchet head
Socket fixing function
Free-turning sleeve
Return angle 5°
Double open-ended wrench
Holding function
Self Adjusting
Ratcheting action 6004
Integrated limit-stop
Profile-friendly
Take it Easy KK VDE
Take it easy wrenches Joker
Take it easy socket
Take it easy L-Keys
HF - With holding function
Reduced shaft diameter and integrated insulation protection
Hex-Plus
Kraftform handle
Non-roll feature
Anti-Slip
30°
Return angle
Ball tip

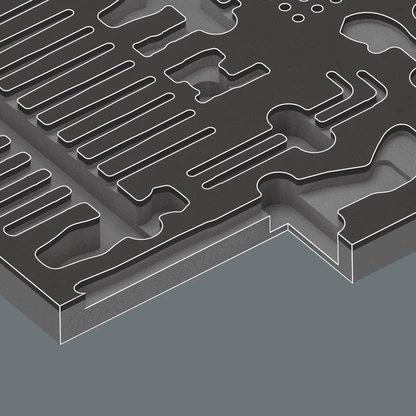

Safe storage and quick overview

The tools sit securely in the foam thanks to precise contour cutouts, but are easy to remove. The carefully designed arrangement of the tools ensures space-saving storage and quick access to each tool.

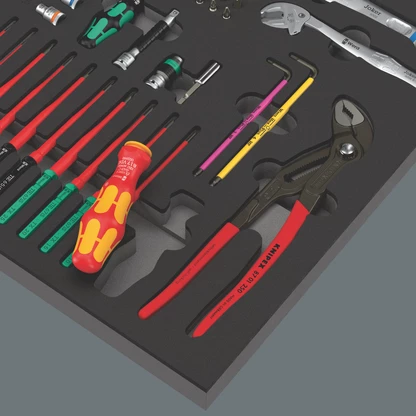

Two-coloured foam insert

After removing the tool the light grey second foam becomes visible and therefore missing tools are quickly identified.

Kraftform Kompakt VDE

Testing the tool for dielectric strength at 10,000 volt gives the user the peace of mind that their tool has been tested for its most important property, insulation. Wera VDE tools are subjected to this test piece by piece which guarantees safe working at up to 1,000 volt.

Zyklop “6 in 1”

1. Fine-tooth ratchet 2. Flex-head ratchet 3. Angle ratchet 4. Quick-release ratchet 5. Power ratchet 6. Screwdriver

Double open-ended wrench

The Joker double open-ended wrench is ideally suited for locking down nuts and bolts.

Joker 6004: automatically and continuously self-setting

With its automatically and continuously gripping parallel jaws the Joker spanner 6004 covers all dimensions in the respective field of application. The tool automatically finds the required size when placed on the bolt or screw, no setting required.

Find out more about this product

PDF
Datasheet

Product description

Durable foam insert; two-coloured for quick identification of missing parts; suitable for the Tool Rebel roller cabinets, equipped with one Kraftform Kompakt VDE 817 VDE handle and 10 blades for the following screw profiles: Phillips, Pozidriv, TORX®, hexagonal socket and slotted, one Zyklop Speed ratchet (1/4"), 8 sockets (1/4"), 1 extension (1/4", 50 mm long), one adapter (1/4" square head to 1/4" hexagon) for 1/4" bits, one universal holder for screwdriving machines for 1/4" bits, 16 bits (25 mm long) for the following screw profiles: Phillips, Pozidriv, TORX®, hexagonal socket and slotted; 2 L-keys with holding function for hexagonal socket screws (sizes 3.0 and 4.0), one Joker 6002 double open-end wrench (sizes 17 and 19), one 6004 Joker S self-setting wrench for hexagon screw heads and bolts with wrench sizes 10.0; 11.0; 12.0; 13.0 (metric) or 7/16"; 1/2" (imperial), one KNIPEX Cobra® 87 01 250 high-tech water pump pliers.

Tools in this set

1PH 1 x 157 mm
05006512001
1PH 2 x 157 mm
05006513001
1PZ 1 x 157 mm
05006526001
1PZ 2 x 157 mm
05006527001
1TX 15 x 157 mm
05006540001
1TX 20 x 157 mm
05006541001
1TX 25 x 157 mm
05006542001
15.5 x 23 mm
05003504001
16 x 23 mm
05003505001
17 x 23 mm
05003506001
18 x 23 mm
05003507001
110 x 23 mm
05003509001
111 x 23 mm
05003510001
112 x 23 mm
05003511001
113 x 23 mm
05003512001
1PH 1 x 25 mm
05072070001
1PH 2 x 25 mm
05072072001
1PZ 1 x 25 mm
05072080001
1PZ 2 x 25 mm
05072082001
1TX 10 x 25 mm
05066485001
1TX 15 x 25 mm
05066486001
1TX 20 x 25 mm
05066487001
1TX 25 x 25 mm
05066488001
13 x 25 mm
05056315001
14 x 25 mm
05056320001
15 x 25 mm
05056325001
16 x 25 mm
05056330001
10.6 x 4.5 x 25 mm
05072055001
10.8 x 5.5 x 25 mm
05072057001
11 x 5.5 x 25 mm
05072059001
11.2 x 6.5 x 25 mm
05072061001
110; 11; 12; 13 x 7/16; 1/2" x 154 mm
05020100001

KNIPEX Cobra® High-Tech Water Pump Pliers 87 01 125

1KNIPEX Cobra® High-Tech Water Pump Pliers 87 01 125
1344 x 30 x 392 mm
(1) 05137353001
(1) Attention: The foam insert does not fit in the previous model 05501051001 of the roller cabinet.

Applications:

Elektro / VDE
Haushalt & Wartung
