The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.
Kraftform Kompakt VDE 15 Torque 1.2-3.0 Nm extra slim 1
15 pieces- Kraftform Kompakt VDE torque screwdriver set with adjustable torque
- Adjustable Kraftform VDE torque holder exclusively for Wera VDE interchangeable blades
- VDE interchangeable blades 154 mm long
- In robust pouch
- 15-piece
Product features
Individually tested
Each Kraftform Kompakt VDE set has been tested individually at 10,000 volts, in accordance with IEC 60900.This ten-times-higher testing load guarantees safe working at their maximum permitted load of 1,000 volts.
The handle/blade system – Kraftform Kompakt VDE
Kraftform adjustable torque handle for Electricians
Easy-to-read scale value. Measurement accuracy is ± 6 % in accordance with the standard EN ISO 6789.
Kraftform adjustable torque handle for Electricians
Simple setting of the required torque by hand.
Excess-load signal
Distinctly audible and noticeable excess-load signal when the pre-set torque is reached.
Inserting the blade
According to the job, the insulated inter-changeable blade with the required tipstyle, or a switch cabinet key is inserted into the clamping mechanism.
Taking out the blade
By pulling and holding down the clamping sleeve the interchangeable screwdriver blade, or the switch cabinet key, is unlocked and can easily be taken out of the handle.
Product description

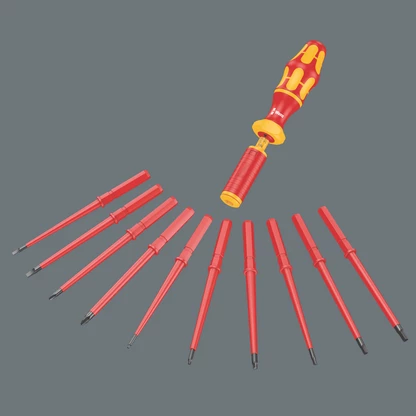

15-piece torque VDE interchangeable blade set. Includes 14 blades (12 of which with a reduced diameter) with integrated insulation protection. Torque VDE holder with adjustable torque from 1.2-3.0 Nm. Kraftform Plus handle: hard gripping zones for high working speeds whereas soft zones ensure high torque transfer.
Tools in this set
17441 VDE x 1.2-3.0 Nm
05074750001
Kraftform Kompakt VDE 62 iS
Kraftform Kompakt VDE 65 iS
Kraftform Kompakt VDE 65 iS PZ/S
Kraftform Kompakt VDE 67 i TORX®
Kraftform Kompakt VDE 67 iS TORX®
Kraftform Kompakt VDE 60 i
Kraftform Kompakt VDE 60 iS
10.6 x 3.5 x 154 mm
(1)
10.8 x 4 x 154 mm
(1)
11 x 5.5 x 154 mm
(1)
(1) Discontinued item
