The tools sit securely in the foam thanks to precise contour cutouts, but are easy to remove. The carefully designed arrangement of the tools ensures space-saving storage and quick access to each tool.
- Durable foam insert, each tool has its own place; two-coloured, missing tools will quickly be noticed
- Individually tested tools as per IEC 60900 at 10,000 V for safe working up to 1,000 volt
- Includes one Zyklop VDE ratchet, 12 sockets, 7 bit sockets with holding function for TORX® screws, 5 bit sockets with holding function for hexagonal socket screws, 2 extensions (75 mm and 150 mm long), one handle for Kraftform Kompakt VDE blades, one adapter blade (1/4" external hexagon to 9 mm external hexagon)
- Ratchet in extremely slim design; fine toothing with 80 teeth, short return angle of only 4.5° for easy working even in very confined spaces
- Sockets, bit sockets and extensions with increased safety thanks to a 2-component insulation with yellow insulation core under red outer insulation layer
- Plastic sleeve protects surfaces from damage
- 817 VDE handle for Kraftform Kompakt interchangeable blades
- One Kraftform Kompakt A VDE 712 i adapter blade (1/4" external hexagon to 9 mm external hexagon) for 1/4" sockets and bit sockets
- Width x height x depth: without tools 344 x 30 x 392 mm, with tools 344 x 52 x 392
Product features

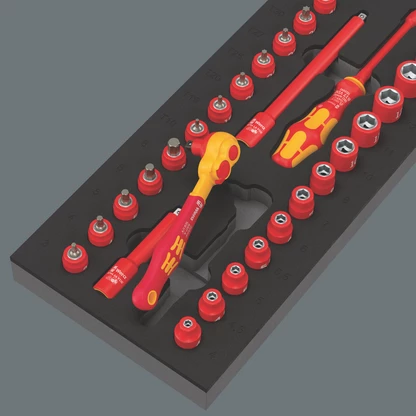

Safe storage and quick overview

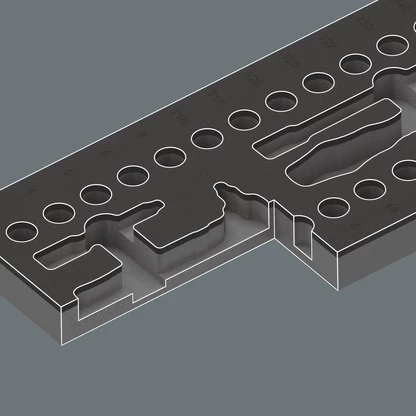

Two-coloured foam insert
After removing the tool the light grey second foam becomes visible and therefore missing tools are quickly identified.
Individually tested
Safe working at voltages up to 1,000 V is guaranteed as all tools are individually tested at 10,000 V as per IEC 60900.
For small spaces
With its extremely slim design, fine toothing with 80 teeth and a low return angle of only 4.5°, the Zyklop VDE ratchet allows easy working even in very confined spaces.
Ball lock
The ball lock ensures sockets and accessories fit securely, providing increased safety during operation. A short press on the release button allows the tool to be changed quickly.
Switch lever
Switch lever for convenient change of direction.
Find out more about this product
Product description
Durable foam insert; two-coloured for quick identification of missing parts; suitable for the Tool Rebel roller cabinets. Equipped with: one Zyklop 8007 A VDE ratchet with reversing lever (1/4"), 12 Zyklop 8790 A sockets (1/4"), 7 Zyklop 8767 A HF bit sockets (1/4") with holding function for TORX® screws, 5 Zyklop 8740 A HF bit sockets (1/4") with holding function for hexagonal socket screws, 2 Zyklop extensions (1/4", 8794 LA VDE (150 mm long), 8794 SA VDE (91 mm long)), one 817 VDE bitholding screwdriver with 9 mm hexagon mounting for Wera Kraftform Kompakt VDE blades, one Kraftform Kompakt A VDE 712 i adapter blade, adapts from 9 mm hexagon to 1/4" square head, which also allows 1/4" sockets and bit sockets to be used with the 817 VDE bitholding screwdriver. All tools are individually tested as per IEC 60900. This guarantees safe working at voltages up to 1,000 V.
Tools in this set
11/4" x 144 mm
05004866001
14.5 x 41 mm
05005929001
14 x 41 mm
05005930001
15 x 41 mm
05005931001
15.5 x 41 mm
05005932001
16 x 41 mm
05005933001
17 x 41 mm
05005934001
18 x 41 mm
05005935001
110 x 41 mm
05005936001
111 x 41 mm
05005937001
112 x 41 mm
05005938001
113 x 41 mm
05005939001
114 x 41 mm
05005940001
12
Show more
1TX 10 x 46 mm
05005920001
1TX 15 x 46 mm
05005921001
1TX 20 x 46 mm
05005922001
1TX 25 x 46 mm
05005923001
1TX 27 x 46 mm
05005924001
1TX 30 x 46 mm
05005925001
1TX 40 x 46 mm
05005926001
13 x 46 mm
05005900001
14 x 46 mm
05005901001
15 x 46 mm
05005902001
16 x 46 mm
05005903001
18 x 47 mm
05005904001
11/4" x 150 mm
05003301001
11/4" x 91 mm
05005950001
19 x 98 mm
05003990001
11/4" x 154 mm
05006642001
1172 x 30 x 392 mm
(1)
05137316001
(1) Attention: The foam insert does not fit in the previous model 05501051001 of the roller cabinet.
Applications:
Elektro / VDE
