The 1/4" Zyklop VDE ratchet is especially suitable for all couplings in electrical building installations.
8100 SA VDE 1 Zyklop ratchet set, insulated, reversing lever, 1/4" drive, metric
05004967001, 22 pieces- 22-piece 1/4" ratchet set; VDE-insulated
- One Zyklop ratchet, 10 sockets, 5 bit sockets with holding function for TORX® screws, 4 bit sockets with holding function for hexagonal socket screws, one extension (150 mm)
- Individually tested tools as per IEC 60900
- Increased safety thanks to 2-component insulation with a yellow insulation core under an outer red insulation layer
- Compact textile box with twist-to-unlock system: the tools are securely stored, yet easy to remove
- Textile box made of robust material, protects surfaces from damage, can be docked onto the Wera 2go system
Product features
Individually tested
Safe working at voltages up to 1,000 V is guaranteed as Zyklop tools for electricians are individually tested at 10,000 V as per IEC 60900.
For electrical building technology
For small spaces
With its extremely slim design, fine toothing with 80 teeth and a low return angle of only 4.5°, the Zyklop VDE ratchet allows easy working even in very confined spaces.
Switch lever
Switch lever for convenient change of direction.
Ball lock
The ball lock ensures sockets and accessories fit securely, providing increased safety during operation. A short press on the release button allows the tool to be changed quickly.

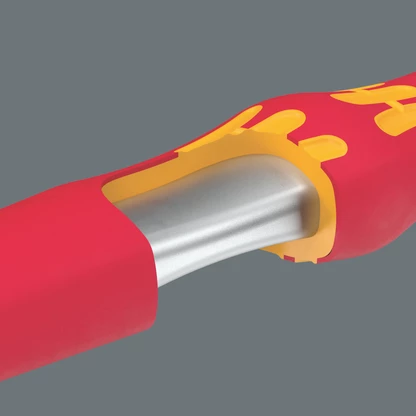

Increased safety
The Zyklop VDE tools offer increased safety thanks to their 2-component insulation with a yellow insulation core under an outer red insulation layer. The yellow insulation core becomes visible if the outer red VDE insulation layer is damaged.
Bit sockets with holding function for TORX® screws
The HF tools developed by Wera are ideal because they feature an optimised geometry of the original TORX® profile. The wedging forces resulting from the surface pressure between the drive tip and the screw profile mean that TORX® screws made according to Acument Intellectual Properties specifications are securely held on the tool!
Find out more about this product
Product description
22-piece 1/4" ratchet set; VDE-insulated. For the most common VDE screw connections in electrical building installations. One Zyklop VDE ratchet with reversing lever for easy clockwise/counterclockwise change, fine-toothed (80 teeth, low return angle of only 4.5°); 10 Zyklop VDE sockets, 5 Zyklop VDE bit sockets with holding function for TORX® screws, 4 Zyklop VDE bit sockets with holding function for hexagonal socket screws, one Zyklop VDE extension (150 mm long); all tools individually tested as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. One robust textile box, compact design for space-saving tool storage; the firm and light material lowers the weight of the set - ideal for mobile use. Equipped with twist-to-unlock system for easy removal of the tools.
Tools in this set
11/4" x 144 mm
05004866001
14.5 x 41 mm
05005929001
15 x 41 mm
05005931001
15.5 x 41 mm
05005932001
16 x 41 mm
05005933001
17 x 41 mm
05005934001
18 x 41 mm
05005935001
110 x 41 mm
05005936001
111 x 41 mm
05005937001
112 x 41 mm
05005938001
113 x 41 mm
05005939001
114 x 41 mm
05005940001
11
Show more
1TX 10 x 46 mm
05005920001
1TX 15 x 46 mm
05005921001
1TX 20 x 46 mm
05005922001
1TX 25 x 46 mm
05005923001
1TX 30 x 46 mm
05005925001
13 x 46 mm
05005900001
14 x 46 mm
05005901001
15 x 46 mm
05005902001
16 x 46 mm
05005903001
11/4" x 150 mm
05003301001
Hook and Loop Fastener Strip 120
1120 x 50 mm
Applications:
Elektro / VDE
